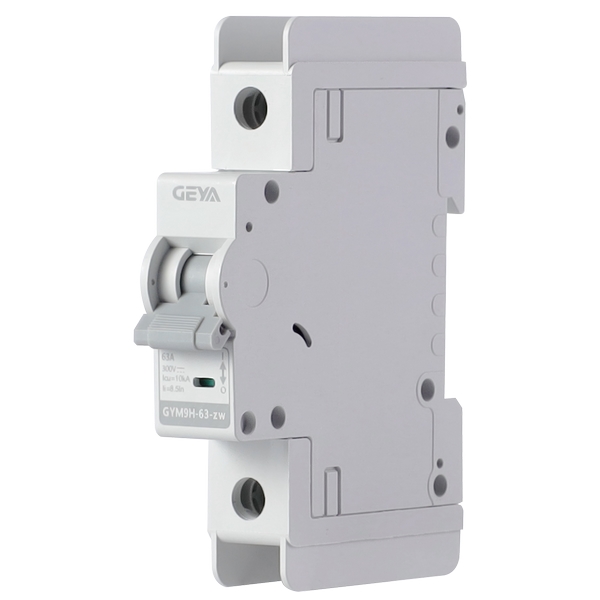

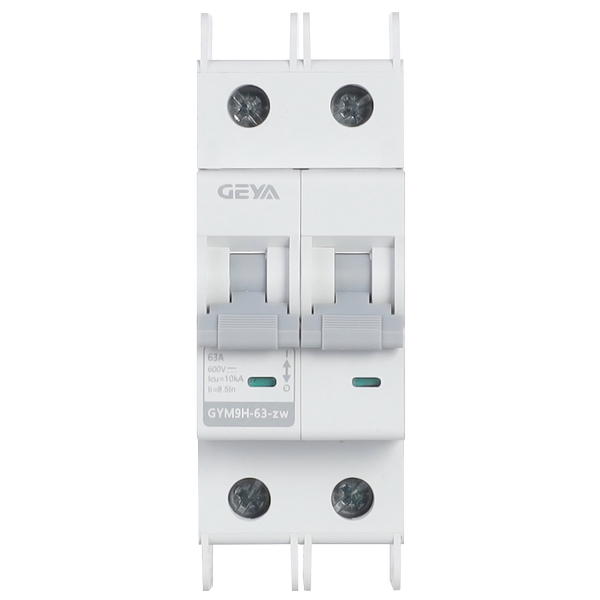

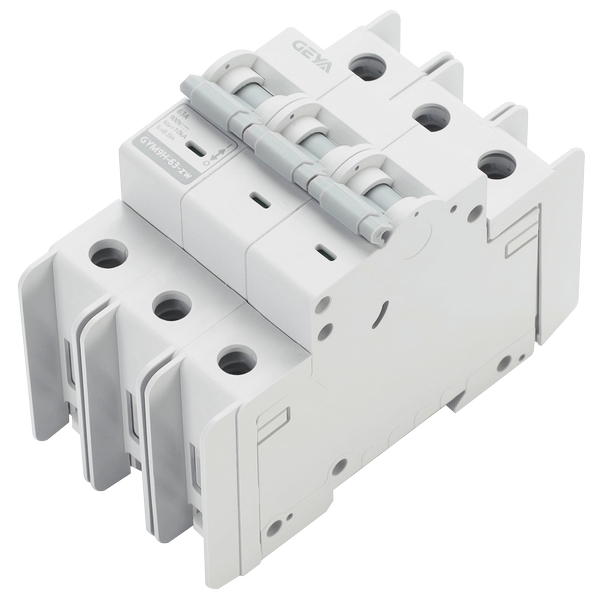

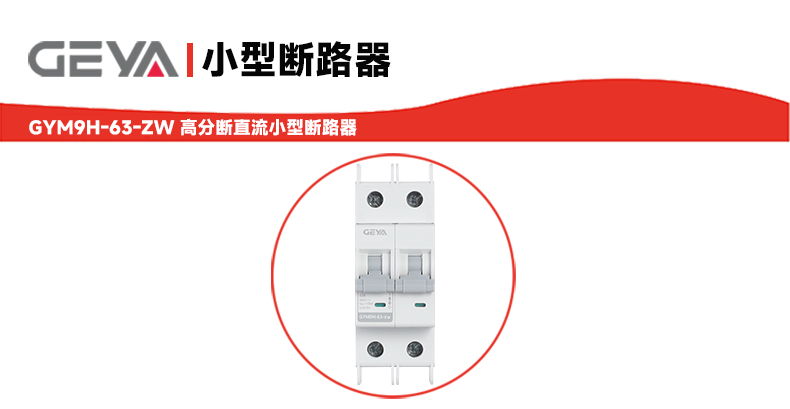

產品介紹：GYM9H-63-ZW是一款專為直流系統設計的高性能小型斷路器。該產品額定電流覆蓋至63A，直流額定電壓可達1200V，核心功能是為直流線路提供可靠的過載和短路保護，同時也可用于線路的不頻繁操作與轉換。其設計充分考慮了現代直流應用場景的嚴苛要求，是通訊基站、光伏發電系統等直流配電領域的理想選擇。

所屬分類：直流小型斷路器 返回上一級

價格：

促銷：

{{cuxiaoname}}

[
                                        {"產品規格": "1P-10kA-DC300V","規格": "1A"},{"產品規格": "1P-10kA-DC300V","規格": "2A"},{"產品規格": "1P-10kA-DC300V","規格": "3A"},{"產品規格": "1P-10kA-DC300V","規格": "4A"},{"產品規格": "1P-10kA-DC300V","規格": "6A"},{"產品規格": "1P-10kA-DC300V","規格": "10A"},{"產品規格": "1P-10kA-DC300V","規格": "16A"},{"產品規格": "1P-10kA-DC300V","規格": "20A"},{"產品規格": "1P-10kA-DC300V","規格": "25A"},{"產品規格": "1P-10kA-DC300V","規格": "32A"},{"產品規格": "1P-10kA-DC300V","規格": "40A"},{"產品規格": "1P-10kA-DC300V","規格": "50A"},{"產品規格": "1P-10kA-DC300V","規格": "63A"},{"產品規格": "2P-10kA-DC600V","規格": "1A"},{"產品規格": "2P-10kA-DC600V","規格": "2A"},{"產品規格": "2P-10kA-DC600V","規格": "3A"},{"產品規格": "2P-10kA-DC600V","規格": "4A"},{"產品規格": "2P-10kA-DC600V","規格": "6A"},{"產品規格": "2P-10kA-DC600V","規格": "10A"},{"產品規格": "2P-10kA-DC600V","規格": "16A"},{"產品規格": "2P-10kA-DC600V","規格": "20A"},{"產品規格": "2P-10kA-DC600V","規格": "25A"},{"產品規格": "2P-10kA-DC600V","規格": "32A"},{"產品規格": "2P-10kA-DC600V","規格": "40A"},{"產品規格": "2P-10kA-DC600V","規格": "50A"},{"產品規格": "2P-10kA-DC600V","規格": "63A"},{"產品規格": "3P-10kA-DC900V","規格": "1A"},{"產品規格": "3P-10kA-DC900V","規格": "2A"},{"產品規格": "3P-10kA-DC900V","規格": "3A"},{"產品規格": "3P-10kA-DC900V","規格": "4A"},{"產品規格": "3P-10kA-DC900V","規格": "6A"},{"產品規格": "3P-10kA-DC900V","規格": "10A"},{"產品規格": "3P-10kA-DC900V","規格": "16A"},{"產品規格": "3P-10kA-DC900V","規格": "20A"},{"產品規格": "3P-10kA-DC900V","規格": "25A"},{"產品規格": "3P-10kA-DC900V","規格": "32A"},{"產品規格": "3P-10kA-DC900V","規格": "40A"},{"產品規格": "3P-10kA-DC900V","規格": "50A"},{"產品規格": "3P-10kA-DC900V","規格": "63A"},{"產品規格": "4P-10kA-DC1200V","規格": "1A"},{"產品規格": "4P-10kA-DC1200V","規格": "2A"},{"產品規格": "4P-10kA-DC1200V","規格": "3A"},{"產品規格": "4P-10kA-DC1200V","規格": "4A"},{"產品規格": "4P-10kA-DC1200V","規格": "6A"},{"產品規格": "4P-10kA-DC1200V","規格": "10A"},{"產品規格": "4P-10kA-DC1200V","規格": "16A"},{"產品規格": "4P-10kA-DC1200V","規格": "20A"},{"產品規格": "4P-10kA-DC1200V","規格": "25A"},{"產品規格": "4P-10kA-DC1200V","規格": "32A"},{"產品規格": "4P-10kA-DC1200V","規格": "40A"},{"產品規格": "4P-10kA-DC1200V","規格": "50A"},{"產品規格": "4P-10kA-DC1200V","規格": "63A"},{"產品規格": "1P-6kA-DC300V","規格": "1A"},{"產品規格": "1P-6kA-DC300V","規格": "2A"},{"產品規格": "1P-6kA-DC300V","規格": "3A"},{"產品規格": "1P-6kA-DC300V","規格": "4A"},{"產品規格": "1P-6kA-DC300V","規格": "6A"},{"產品規格": "1P-6kA-DC300V","規格": "10A"},{"產品規格": "1P-6kA-DC300V","規格": "16A"},{"產品規格": "1P-6kA-DC300V","規格": "20A"},{"產品規格": "1P-6kA-DC300V","規格": "25A"},{"產品規格": "1P-6kA-DC300V","規格": "32A"},{"產品規格": "1P-6kA-DC300V","規格": "40A"},{"產品規格": "1P-6kA-DC300V","規格": "50A"},{"產品規格": "1P-6kA-DC300V","規格": "63A"},{"產品規格": "2P-6kA-DC600V","規格": "1A"},{"產品規格": "2P-6kA-DC600V","規格": "2A"},{"產品規格": "2P-6kA-DC600V","規格": "3A"},{"產品規格": "2P-6kA-DC600V","規格": "4A"},{"產品規格": "2P-6kA-DC600V","規格": "6A"},{"產品規格": "2P-6kA-DC600V","規格": "10A"},{"產品規格": "2P-6kA-DC600V","規格": "16A"},{"產品規格": "2P-6kA-DC600V","規格": "20A"},{"產品規格": "2P-6kA-DC600V","規格": "25A"},{"產品規格": "2P-6kA-DC600V","規格": "32A"},{"產品規格": "2P-6kA-DC600V","規格": "40A"},{"產品規格": "2P-6kA-DC600V","規格": "50A"},{"產品規格": "2P-6kA-DC600V","規格": "63A"},{"產品規格": "3P-6kA-DC900V","規格": "1A"},{"產品規格": "3P-6kA-DC900V","規格": "2A"},{"產品規格": "3P-6kA-DC900V","規格": "3A"},{"產品規格": "3P-6kA-DC900V","規格": "4A"},{"產品規格": "3P-6kA-DC900V","規格": "6A"},{"產品規格": "3P-6kA-DC900V","規格": "10A"},{"產品規格": "3P-6kA-DC900V","規格": "16A"},{"產品規格": "3P-6kA-DC900V","規格": "20A"},{"產品規格": "3P-6kA-DC900V","規格": "25A"},{"產品規格": "3P-6kA-DC900V","規格": "32A"},{"產品規格": "3P-6kA-DC900V","規格": "40A"},{"產品規格": "3P-6kA-DC900V","規格": "50A"},{"產品規格": "3P-6kA-DC900V","規格": "63A"},{"產品規格": "4P-6kA-DC1200V","規格": "1A"},{"產品規格": "4P-6kA-DC1200V","規格": "2A"},{"產品規格": "4P-6kA-DC1200V","規格": "3A"},{"產品規格": "4P-6kA-DC1200V","規格": "4A"},{"產品規格": "4P-6kA-DC1200V","規格": "6A"},{"產品規格": "4P-6kA-DC1200V","規格": "10A"},{"產品規格": "4P-6kA-DC1200V","規格": "16A"},{"產品規格": "4P-6kA-DC1200V","規格": "20A"},{"產品規格": "4P-6kA-DC1200V","規格": "25A"},{"產品規格": "4P-6kA-DC1200V","規格": "32A"},{"產品規格": "4P-6kA-DC1200V","規格": "40A"},{"產品規格": "4P-6kA-DC1200V","規格": "50A"},{"產品規格": "4P-6kA-DC1200V","規格": "63A"}
                                        ]



為什么選擇GYM9H-63-ZW 高分?jǐn)?a href="http://www.zhymyx.com/product_detail/441452.html" target="_blank">直流小型斷路器？

在直流配電系統中，對斷路器的分?jǐn)嗄芰?、安全性及適用性有要求。GYM9H-

63-ZW斷路器憑借其針對直流特性優化的滅弧技術與結構設計，能夠安全、快速地切斷

直流故障電流，有效防止因過載或短路引起的設備損壞與安全事故。選擇它，即為您的

直流系統選擇了一款專業、可靠的保護方案。

GYM9H-63-ZW 高分?jǐn)嘀绷?a href="http://www.zhymyx.com/product_category/xiaoxingduanluqi.html" target="_blank">小型斷路器產品優勢：

1、高可靠性：優化的內部結構與材料，在直流環境下穩定分?jǐn)?，提供持續有效的保

護。

2、安裝便捷：內置短接排設計，支持寬范圍導線（10.5-16mm2）接線，簡化了安裝流

程，節省布線時間。

3、使用安全：符合嚴格的環保指令RoHS 2.0，不含有害物質；具備清晰的觸點位置指

示，直觀顯示通斷狀態，保障操作人員安全。

4、通用性強：直流無性設計，接線時無需區分正負，減少了接線錯誤的風險，應用

更為靈活。

GYM9H-63-ZW 高分?jǐn)嘀绷餍⌒蛿嗦菲鳟a(chǎn)品特點：

1、高分?jǐn)嗄芰Γ?專為高分?jǐn)嘈枨笤O(shè)計，能有效切斷直流系統中的高電壓、大電流故障。

2、廣泛的電壓覆蓋：適用于額定電壓至高1200V的直流系統，滿足多種高壓直流應用場

合。

3、內置短接排接線：方便多回路并聯接線，提升安裝效率并保持柜內整潔。

4、直流無性：正負均可接入，接線方便，避免因性接反而導致的安裝問題。

5、觸點位置指示：通過指示器明確顯示“通”或“斷”狀態，便于日常維護和故障排

查。

6、強大的接線能力：可接入截面積為10.5mm2至16mm2的導線，適應不同的布線需

求。

GYM9H-63-ZW 高分?jǐn)嘀绷餍⌒蛿嗦菲鳟a(chǎn)品應用：

GYM9H-63-ZW斷路器廣泛應用于需要對直流電進行分配與保護的各類場合，主要包

括：

1、通訊系統：通訊基站、數據中心等的直流配電柜。

2、光伏發電系統：太陽能光伏發電站的直流匯流箱、逆變器前端等。

3、其他直流應用：如軌道交通、船舶電力系統等需要穩定直流保護的領域。


GYM9H-63-ZW 高分?jǐn)嘀绷餍⌒蛿嗦菲餍吞?hào)說明：

GYM9H-63-

產品型號

No poles直流

小型斷路器

MCB

GYM9H-63-ZW 高分?jǐn)嘀绷餍⌒蛿嗦菲骷夹g(shù)參數：

額定電流(In)：1、2、3、4、6、10、16、20、25、32、40、50、63A

額定電壓(Ue)：1P:300VDC;2P:600VDC;3P:900VDC;4P:1200VDC

額定絕緣電壓(Ui)：1200V

Poles：1P、2P、3P、4P

脫扣曲線：B、C、D

分?jǐn)嗄芰Γ?kA、10kA

機械壽命：20000次

電氣壽命：1500次

擰緊力距：2.0N.m

防護等級：IP20

安裝方式：TH35-7.5型標準導軌

GYM9H-63-ZW 高分?jǐn)嘀绷餍⌒蛿嗦菲鳒囟妊a(bǔ)償：

當環境溫度不是基準溫度30度時，參考修正系數如下：

環境溫度

-20℃

-10℃

0℃

10℃

20℃

30℃

40℃

50℃

60℃

電流修正系數

1.25

1.2

1.15

1.10

1.05

1.00

0.95

0.90

0.85

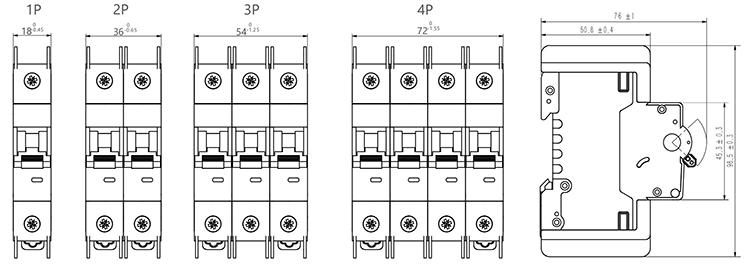

GYM9H-63-ZW 高分?jǐn)嘀绷餍⌒蛿嗦菲鳟a(chǎn)品尺寸：

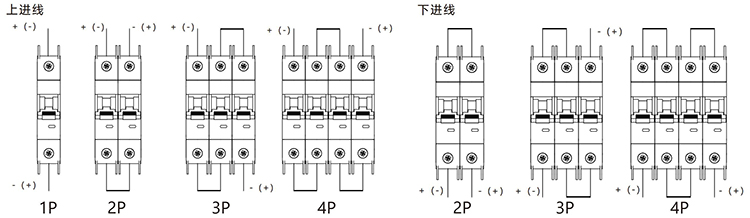

GYM9H-63-ZW 高分?jǐn)嘀绷餍⌒蛿嗦菲鳟a(chǎn)品接線：

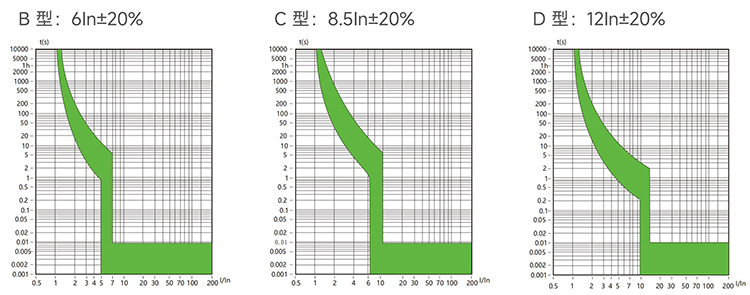

GYM9H-63-ZW 高分?jǐn)嘀绷餍⌒蛿嗦菲髅摽谇€：


GYM9H-63-ZW 高分?jǐn)嘀绷餍⌒蛿嗦菲髅摽谔匦裕?/span>

脫扣類型	電流 ( A )	起始狀態	起始時間	預期結果	基準溫度
B、C、D	1.05In	冷態	t≥1h(In≤63)	不脫扣	30℃
	1.3In	熱態	t≤1h(In≤63)	脫扣
	2.55In	冷態	1s<t<120s	脫扣
